Daikin Ductless Heat Pump Products Toronto
All Daikin ductless heat pumps consist of an indoor unit, which is either wall-mounted, floor-mounted or concealed, paired with a quiet and compact outdoor unit. As you likely gathered from its name, a mini-split/ductless system is a split system, which means it has components that are located inside and outside the home. And in the case of heat pumps, they provide year-round comfort by mechanically cooling or heating the air from inside your home while transferring the heat absorbed or lost to the outside via a sealed refrigerant circuit. Daikin’s single-room heat pumps are energy efficient and ideal for heating a small space. They are small and unobtrusive in your home. Imagine your small office or studio being toasty warm without the fuss of a furnace or the hassle of a ducted system at all. With an opening just three inches or smaller in diameter, a ductless mini-split heat pump is easy to install and maintain.
Available Heat Pumps

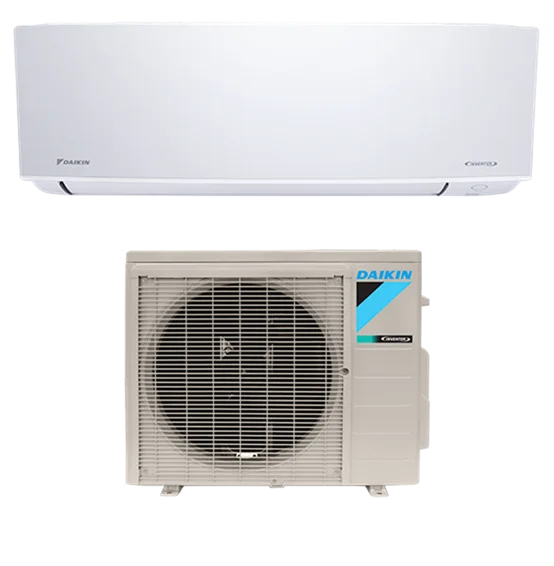

Daikin EMURA Single Zone Wall Mount Heat Pump
Single Zone Indoor Unit
Daikin EMURA was designed to perfectly balance technological leadership and the beauty of aerodynamics.
- High efficiencies with up to 18 SEER and up to 9.3 HSPF
- Whisper quiet sound levels down to 19 dB(A)
- Can be controlled remotely with the DaikinComfort Control App**
Features:
- Inverter Compressor
- 208/230/1 Power Supply
- Cooling Range 50° to 114° F (-4° to 115° F w/Wind Baffle)
- Heating Range 5° to 65° F
- Precharged for up to 33 ft of Liquid Line
- Indoor Sound Pressure as Low as 19 dB(A)
- Outdoor Sound Pressures as Low as 46 dB(A)
- Titanium Photocatalytic Air Purifying Filter
- Econo Mode
- Program Dry Function
- Powerful Operation Mode
- Backlit LCD Wireless Remote Controller
- Outdoor Unit Quiet Operation
- Auto Changeover
- Auto Fan Speed Control
- Self Diagnostics with Digital Display
- Auto Restart after Power Failure
- Anti-Corrosion Treatment on Heat Exchanger
- Max Piping (09/12 MBH): 66 Length – 49 Height
- Max Piping (18 MBH): 98 Length – 66 Height
- 2-Area intelligent Eye
- Comfort Airflow
- 3-D Airflow
Complete warranty details avail-able from your local dealer or at www.daikincomfort.com. To receive the 12-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or Quebec.
17 Series Wall Mount
Single Zone Heat Pump
Daikin’s 17 Series Wall Mount systems provide energy efficiency and comfort control with an affordable, cost-saving solution.
- 17 SEER
- 9.0 HSPF
- R-410A Refrigerant Compatible
Features:
- Energy Efficient – 17 SEER – 9.0 HSPF – up to 11.5EER – Variable Speed Inverter Compressor
- Cooling Range 50° – 115°F
- Heating Range 5° – 65°F
- Indoor Sound Pressure as low as 23 dB(A)
- Eco+
- Powerful Operation Mode
- Blue Fin Protection
- Titanium Apatite Photocatalytic Air Purifying Filter
- Auto Fan Speed Control
- Self-Diagnostics with Digital Display
- Auto Restart after Power Failure
- Anti-Corrosion Heat Exchanger Treatment
- Anti-Corrosion Treatment on Heat Exchanger
- Hot-start function (Heat Pump)
- Automatic defrosting (Heat Pump)
Complete warranty details available from your local dealer or at www.daikincomfort.com. To receive the 10-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration and some of the additional requirements are not required in California or Quebec.
19 Series Wall Mount
Single Zone Heat Pump
Ideal solution for spaces with primary living areas, rooms with poor air flow, renovations, basements, attics, garages, and home add-ons.
- SEER Up to 19
- Up to 10 HSPF
- R-410A Refrigerant Compatible
Features:
- Energy Efficient – Up to 19 SEER
- Up to 10 HSPF
- up to 12.5 EER –Variable Speed Inverter Compressor
- Cooling Range 50° – 115° F (-4° – 115° F with Air Direction adjustment grille
- Heating Range 5° – 65° F
- Indoor Sound Pressure as low as 25 dB(A)
- Outdoor Sound Pressure as Low as 46 dB(A)
- Washable Air Filter
- Program Dry Function
- Eco+ Mode
- Powerful Operation Mode
- Backlit Wireless Remote Controller
- Auto Changeover (Heat Pump Only)
- Auto Fan Speed Control
- Self Diagnostics with Digital Display
- Auto Restart after Power Failure
- Anti-Corrosion Heat Exchanger Treatment
- Automatic defrosting (Heat Pump)
Daikin AURORA – Floor Mount
Single Zone Heat Pump
Daikin AURORA floor-mounted unit is ideal for cooling and heating a space, and is a perfect replacement to traditional radiant systems or window air conditioning units.
- Up to 20 SEER
- Up to 11.7 HSPF
- 12.5 EER
Features:
- Energy Efficient – Up to 20 SEER – Up to 11.7 HSPF – 13.0 EER
- Up to 100% Heating Capacity at 5°F (-15°C) and operate efficiently as low as -13°F ambient temperature.
- Up to 100% Cooling Capacity at 104°F (40°C).
- Cooling Range 50° – 115° F (-4° – 115° F with optional Air Direction adjustment grille)
- Heating Range -13° – 60° F
- Redesigned PCB in the outdoor unit to withstand extreme conditions
- Indoor Sound Pressure as low as 23 dB(A)
- Outdoor Sound Pressure as Low as 49 dB(A)
- Washable Air Filter
- Program Dry Function
- Econo Mode
- Powerful Operation Mode
- Backlit Wireless Remote Controller
- Outdoor unit quiet operation
- Auto Changeover
- Auto Fan Speed Control
- Self Diagnostics with Digital Display
- Auto Restart after Power Failure
- Anti-Corrosion Heat Exchanger Treatment
- Quick warming function
- Hot-start function
- Automatic defrosting
Complete warranty details available from your local dealer or at www.daikincomfort.com. To receive the 12-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration and some of the additional requirements are not required in California or Quebec.
Daikin AURORA – Floor Mount
Single Zone Heat Pump
Daikin AURORA floor-mounted unit is ideal for cooling and heating a space, and is a perfect replacement to traditional radiant systems or window air conditioning units.
- Up to 20 SEER
- Up to 11.7 HSPF
- 12.5 EER
Features:
- Energy Efficient – Up to 20 SEER – Up to 11.7 HSPF – 13.0 EER
- Up to 100% Heating Capacity at 5°F (-15°C) and operate efficiently as low as -13°F ambient temperature.
- Up to 100% Cooling Capacity at 104°F (40°C).
- Cooling Range 50° – 115° F (-4° – 115° F with optional Air Direction adjustment grille)
- Heating Range -13° – 60° F
- Redesigned PCB in the outdoor unit to withstand extreme conditions
- Indoor Sound Pressure as low as 23 dB(A)
- Outdoor Sound Pressure as Low as 49 dB(A)
- Washable Air Filter
- Program Dry Function
- Econo Mode
- Powerful Operation Mode
- Backlit Wireless Remote Controller
- Outdoor unit quiet operation
- Auto Changeover
- Auto Fan Speed Control
- Self Diagnostics with Digital Display
- Auto Restart after Power Failure
- Anti-Corrosion Heat Exchanger Treatment
- Quick warming function
- Hot-start function
- Automatic defrosting
Complete warranty details available from your local dealer or at www.daikincomfort.com. To receive the 12-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration and some of the additional requirements are not required in California or Quebec.
Daikin AURORA – Wall Mount
Discreet wall-mounted unit providing high efficiency and comfort. The smooth panel of the wall-mounted indoor unit allows it to blend in with any decor.
- Up to 20.3 SEER
- Up to 12.5 HSPF
- R-410A Refrigerant Compatible
Features:
- Energy Efficient – Up to 20.3 SEER / 12.5 HSPF / 13 EER for ultra-efficient cooling and heating operation and reduced operating costs compared to conventional lower-efficiency systems.
- Advanced Filtration – Long life – washable filters.
- Enhanced Capacity – Up to 100% Heating Capacity at 5°F (-15°C) and confirmed continuous operation as low as -13°F (-25°C) ambient temperature. Up to 100% Cooling Capacity at 104°F (40°C).
- Program Dry allows humidity levels to be reduced.
- Titanium Apatite Photocatalytic Air Purifying Filter – This filter combines the air-purifying filter and titanium apatite photocatalytic deodorizing filter in a single highly effective unit.
- Hot Start. When the heating operation starts or when the unit changes from cooling to heating there is no cold draft.
- Comfort Mode adjust the direction and airflow rate so that the air from the unit does not blow directly on the occupants of the room in cooling. When heating – the flap turns vertically downwards to drive warm air to the bottom of the room.
- Pushing the POWERFUL button on the remote control gives you a boost in cooling or heating power for a 20-minute period – even if the unit is already operating at high capacity.
- Anti-Corrosion Treatment on Heat Exchanger
- Cold Climate Ready (continuous operation down to -13°F (-25°C))
- Outdoor Unit Quiet Operation – When combined with FTX18/24 indoor units.
Complete warranty details available from your local dealer or at www.daikincomfort.com. To receive the 12-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration and some of the additional requirements are not required in California or Quebec.
Daikin AURORA – FDMQ Ducted Concealed
Redesigned to withstand extreme weather conditions, the Daikin AURORA – FDMQ ducted concealed unit makes a difference in any room, offering concealed comfort and flexibility.
Features:
- Energy Efficient – Up to 19.4 SEER – up to 10.8 HSPF – up to 12.7 EER
- Up to 100% Cooling Capacity at 104˚F (40˚C) and efficient operation as high as 115˚F (46˚C) ambient temperature
- Up to 100% Heating Capacity at 5˚F (-15˚C) and efficient operation as low as -13˚F (-25˚C) ambient temperature
- Cooling Range 50˚ – 115˚F (10˚ – 46˚C) (Extended operation to -4˚ – 115˚F (-20˚ – 46˚C) with facility setting and air adjustment grille)
- Heating Range -13˚ – 65˚F (-25˚ – 18˚C)
- Capable of providing external static pressures up to .6 in. WG (150 Pa) on all models
- Redesigned PCB in the outdoor unit to withstand extreme conditions
- Indoor Sound Pressure as low as 33 dB(A)
- Outdoor Sound Pressure as Low as 50 dB(A)
- Program Dry Function
- Auto Changeover
- Auto-Fan Speed control (with wired controller) Self-Diagnostics with digital display
- Drain Pan Inspection Port
- Integral Lift Mechanism
- Auto Restart After Power Failure
- Anti-Corrosion Heat Exchanger Treatment
- Quick Warming Function
- Hot Start Function
- Automatic Defrosting
- Compatible with DKN Cloud Wi-Fi Adaptor
- No optional adapter needed for DIII – connection
- Link your unit into the wider building management system
- Compatible with the Daikin Zoning Kit (DZKS)
Complete warranty details available from your local dealer or at www.daikincomfort.com. To receive the 12-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or Quebec. If product installed in a commercial application, limited warranty period is 5 years.
LV Series Slim Duct
Single Zone Heat Pump
An extremely unobtrusive, compact solution, where only the discharge and intake grills are visible.
- Up to 15.5 SEER
- Up to 10.4 HSPF Performance
- R-410A Refrigerant Compatible
Features:
- Energy Efficient – Up to 15.5 SEER – Up to 10.4 HSPF up to 12.5 EER –Variable Speed Inverter Compressor
- Cooling Range 50° – 115° F (-4° – 115°F with optional Air Direction adjustment grille)
- Heating Range 5° – 64.4° F
- Indoor Sound Pressure as low as 31 dB(A)
- Outdoor Sound Pressure as Low as 43 dB(A)
- Weekly timer
- Program Dry Function
- Econo Mode
- Powerful Operation Mode
- Backlit Wireless Remote Controller
- Auto Changeover
- Auto Fan Speed Control
- Self Diagnostics with Digital Display
- Auto Restart after Power Failure
- Anti-Corrosion Heat Exchanger Treatment
- Quick warming function
- Hot-start function
- Automatic defrosting
Complete warranty details available from your local dealer or at www.daikincomfort.com. To receive the 12-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration and some of the additional requirements are not required in California or Quebec.
LV Series Wall Mount
Single Zone Heat Pump
Feature packed unit also receiving the ENERGY STAR® Most Efficient Mark in 2017.
- Up to 24.5 SEER
- Up to 12.5 HSPF Performance
- R-410A Refrigerant Compatible
Features:
- Energy Efficient – Up to 24.5 SEER
- Up to 12.5 HSPF – up to 15.3 EER – Variable Speed Inverter Compressor
- Cooling Range 50° – 115° F (-4° – 115° F with optional Air Direction adjustment grille)
- Heating Range 5° – 65° F
- Indoor Sound Pressure as low as 22 dB(A)
- Outdoor Sound Pressure as Low as 43 dB(A)
- Intelligent Eye
- Power airflow dual flaps and 3-D Airflow
- Titanium Apatite Photocatalytic Air Purifying Filter
- Weekly timer
- Program Dry Function
- Econo Mode
- Powerful Operation Mode
- Backlit Wireless Remote Controller
- Auto Changeover
- Auto Fan Speed Control
- Self Diagnostics with Digital Display
- Auto Restart after Power Failure
- Anti-Corrosion Heat Exchanger Treatment
- Quick warming function
- Hot-start function
- Automatic defrosting
Complete warranty details available from your local dealer or at www.daikincomfort.com. To receive the 12-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration and some of the additional requirements are not required in California or Quebec.
Quaternity
Single Zone Heat Pump
Highly efficient system provides a comfortable and refreshing indoor environment with advanced filtration and climate control.
- Up to SEER 26.1 and EER 15.8 Performance
- Up to 11.0 HSPF
- R-410A Refrigerant Compatible
Features:
- Energy Efficient – Up to 26.1 SEER – Up to 11.0 HSPF – Up to 15.8 EER – Variable Speed Inverter Compressor
- Cooling Range 14° – 109° F
- Heating Range -4° – 75° F
- Indoor Sound Pressure as low as 26 dB(A)
- Outdoor Sound Pressure as Low as 46 dB(A)
- Power airflow dual flaps and 3-D Airflow
- Titanium Apatite Photocatalytic Air Purifying Filter
- Powerful Operation Mode
- Wireless Remote Controller
- Auto Changeover
- Auto Fan Speed Control
- Self Diagnostics with Digital Display
- Auto Restart after Power Failure
- Anti-Corrosion Heat Exchanger Treatment
- Quick warming function
- Hot-start function
- Automatic defrosting
Complete warranty details available from your local dealer or at www.daikincomfort.com. 12-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or Quebec.
VISTA Ceiling Cassette
Single Zone System
VISTA is a remarkable blend of iconic design and engineering excellence with an elegant white or a silver and white finish.
- 2×2 for seamless integration into ceiling tiles leaving only 5/16 inches
- Built-in condensate pump
- Fresh air intake knockout
Features:
- Seamless integration in standard architectural ceiling tiles
- High efficiencies with up to 20.5 SEER and up to 11.7 HSPF
- Energy efficient thanks to specially developed small tube heat exchanger DC fan motor and two optional intelligent sensors
- Remarkable blend of iconic award-winning design and engineering excellence with an elegant finish in white or a combination of silver and white
- No optional adapter needed for DIII-connection link your unit into the wider building management system
- Fresh air integration possible
- Vertical auto swing (up and down)
- Automatic Operation
- Program dry function
- Auto fan speed (with wired remote controller)
- Hot Start
- Auto restart after power failure
- Self-Diagnosis with digital display
- Anti-corrosion treatment of outdoor heat exchanger fin
- 12-Year Parts Limited Warranty*
Complete warranty details available from your local dealer or at www.daikincomfort.com. To receive the 12-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or Quebec.
NV Series Wall Mount
Single Zone Heat Pump
The new NV Series models provide an improved, modern designed indoor unit, enhanced overall performance as compared to previous models.
- Smart Inverter Technology
- Up to 17.5 SEER / Up to 9.3 HSPF / Up to 9.85 EER
Features:
- Cooling range 50-115 °F (-4-115°F with optional Air Direction adjustment grille and dipswitch setting)
- Heating Range: 5-65°F
- Indoor Unit Quiet Operation
- Intelligent Eye
- Program Dry Function
- Auto Fan Speed
- Wide Angle Louvers
- Dual Flap System
- Comfort Mode
- 3-D Airflow
- Low Ambient Cooling
- Outdoor Unit Quiet Operation
- Automatic Operation
- Auto-Restart
- Self-Diagnosis
- Anti-Corrosion
- Titanium Apatite Photocatalytic Air-Purifying Filter
- Night Set Mode
- Wipe-Clean Flat Panel
- Powerful Operation
- Econo Mode
Complete warranty details available from your local dealer or at www.daikincomfort.com. To receive the 10-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration and some of the additional requirements are not required in California or Quebec.
FDMQ – Ducted Concealed Heat Pump
Single Zone System
FDMQ makes a difference in any room. It offers concealed comfort and enhanced flexibility.
- 2×2 for seamless integration into ceiling tiles leaving only 5/16 inches
- Built-in condensate pump
- Fresh air intake knockout
Features:
- Energy efficient – Up to 20.2 SEER
- Up to 10.6 HSPF
- Up to 12.7 EER
- Available in .75 to 2 Tons
- Capable of providing external static Pressures up to .6 in. Wg on all models
- Integral lift mechanism with 29-9/16” of lift
- Drain pan inspection port makes it easy to observe drain pan conditions
- No optional adapter needed for DIII – connection
- Link your unit into the wider Building management system
- Low-ambient cooling capabilities down to -4°F (-20°C) with facility setting and air adjustment grille
- Compatible with the Daikin Zoning Kit (DZKS)
Complete warranty details available from your local dealer or at www.daikincomfort.com. To receive the 12-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or Quebec. If product installed in a commercial application, limited warranty period is 5 years.
For more information on Daikin ductless heat pump products in Toronto call us today!
